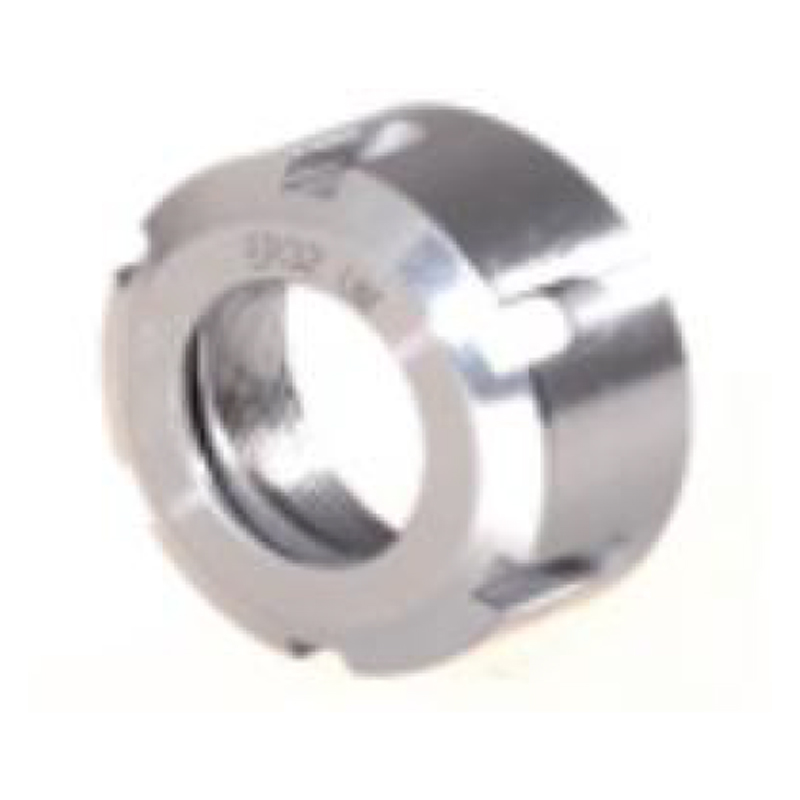

E R / Écrou GSK E R / Écrou GSK

MODÈLE DU PRODUIT

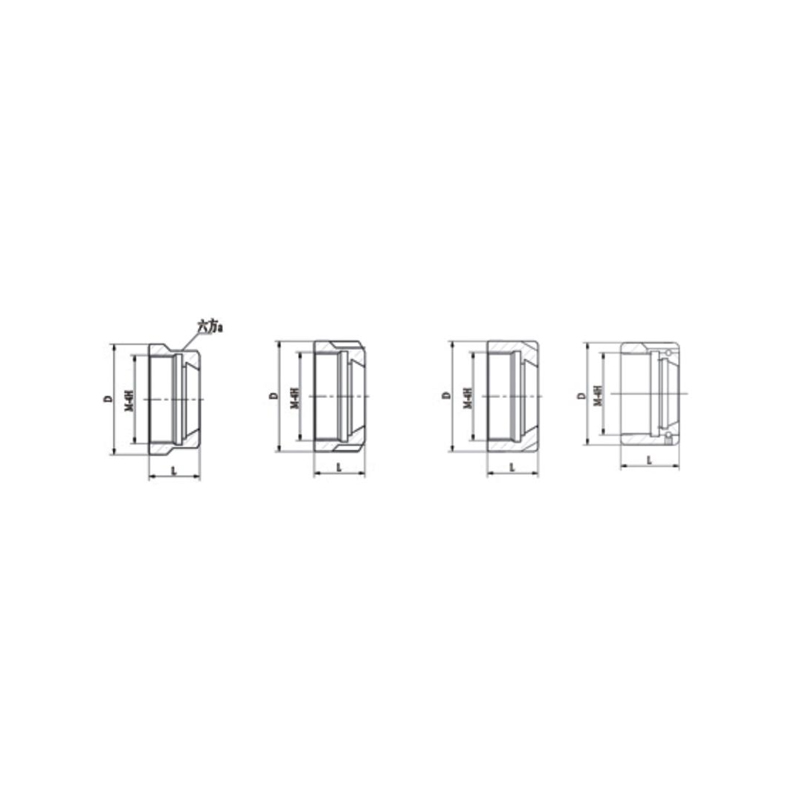

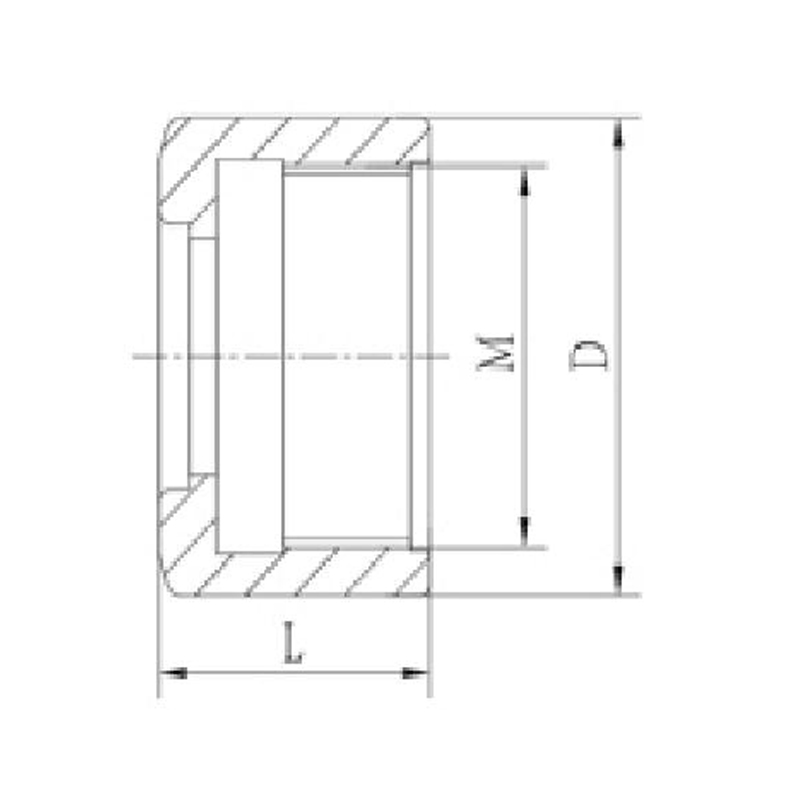

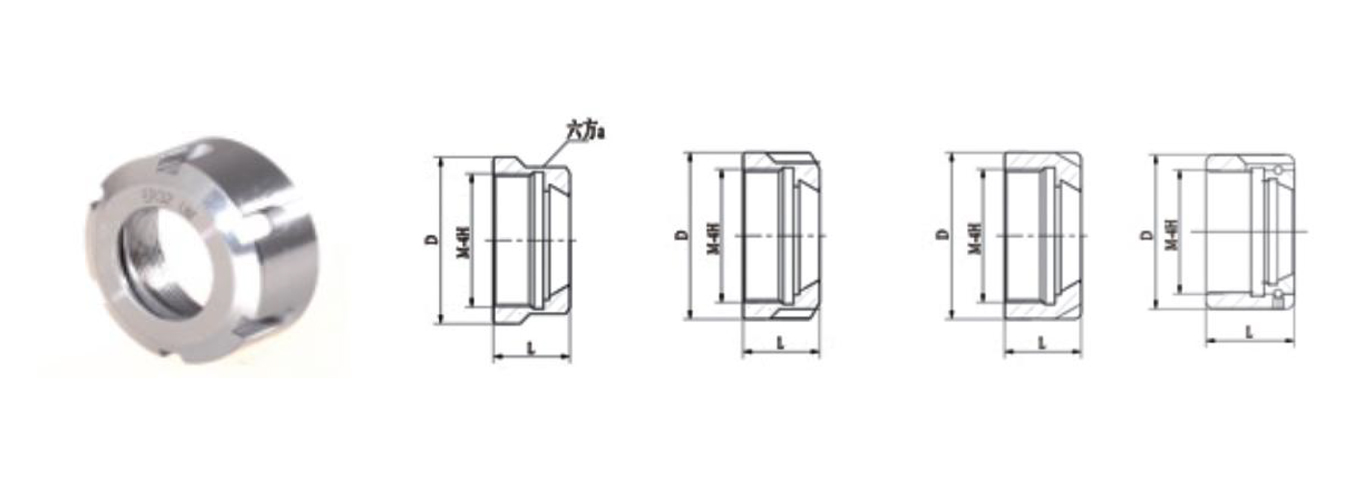

DIMENSIONS

形式

M

D

L

ER11-A

M14x0. 75

19

13

Fig. 1

ER16-A

M22xl. 52

28

17.5

Fig. 1

ER20-A

M25xl.5

34

19

Fig. 1

ER25-UM

M32xl. 5

42

20

Figure 2

ER32-UM

M40xl.5

50

22.5

Figure 2

ER40-UM

M50xl.5

63

29

Figure 2

ER8-M

MIOxO. 75

12

12

Figure 3

ER11-M

M13xO. 75

16

12

Figure 3

ER16-M

M19xl

22

18

Figure 3

ER20-M

M24xl

28

19

Figure 3

ER25-M

M30xl

35

20

Figure 3

ER25-KM

M32xl. 5

42

20

Figure 4

ER32-KM

M40xl.5

50

22.5

Figure 4

ER40-KM

M50xl.5

63

29

Figure 4

MODÈLE DU PRODUIT

DIMENSIONS

former

M

D

L

GSK06

M15xl

20

15

Fig. 1

GSKIO

M21. 5x1

27

18

Fig. 1

GSK16

M32xl. 5

40

25

Fig. 1

GSK25

M45xl.5

54

32

Fig. 1
